在过去的 30 年中,El-O-Matic 品Pai稳步发展,推出了系列气动电动执行机构及控制附件。其执行机构遍布北美洲、欧洲、亚洲的化工等多个行业。
El-O-Matic Actuators
For over 30 years the El-O-Matic? brands of pneumatic rack & pinion and electric valve actuators have been synonymous with a “fit and forget” ideology for quarter-turn and multi-turn valve requirements. With sales way in excess of two million units world wide, the El-O-Matic? brand has established a reputation for quality and reliable performance within the world’s process industries and industrial applications. Using a modular construction of multiple common components, a wide range of combinations can be configured with high quality parts to suit applications across the whole spectrum of industrial processes, allowing easy upgrades, repair and maintenance with fast delivery from a global group of stocking distributors.

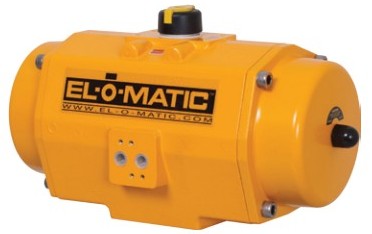

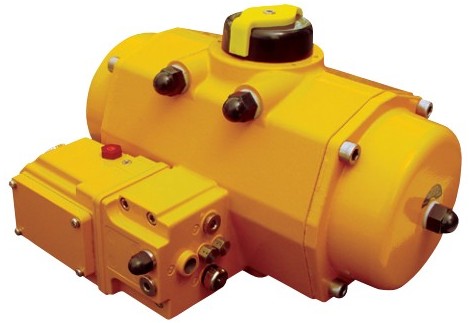

El-O-Matic E 系列和 P 系列执行机构
* 执行机构材质为铝,NAMUR 标准安装界面及 2x ISO 5211 阀门法兰
* 粉末式涂层,齿轮坚固的电镀处理以及不锈钢紧固件提供了出色的防腐保护
* 双作用执行机构输出扭矩达到 4,537 Nm @ 5.5 barg (40,293 in-lbs @ 80 psig) ,单作用执行机构达到 1,958 Nm (17,333 in-lbs)
* 12 个型号,6 种弹簧可供单作用执行机构选择, 以保证产品的经济高效和选型的准确。
* 标准操作温度 -20 °C to +80 °C (-4 °F to +176 °F) ,高温和低温内件可选
* 操作压力可达 8 bar (120 psig)

El-O-Matic EL 系列电动执行机构
El-O-Matic EL 系列电动执行机构是可靠的高性能
产品,无论环境如何苛刻,都表现出完美的操作
性能。EL 系列包括 ELS 小扭矩系列和 EL 中扭
矩系列和 ELD 大扭矩系列。
* 输出扭矩为 18 Nm 至 2,500 Nm
(160 in-lbs to 22,126 in-lbs)
* 危险区域和非危险区域外壳,ATEX 或 FM 认证的防护罩
* 低噪音,高比率电机以及回旋的减少使运行更加平稳
* 优质的铝合金材质使结构更紧凑,重量更轻
* 标准操作温度 -20°C to +80°C (-4°F to +176°F) 高温和低温内件可选。

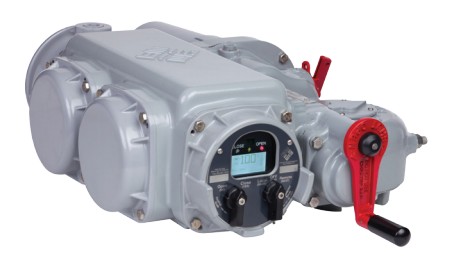

El-O-Matic ELQ 系列电动执行机构
模块化结构广泛应用于ELQ系列电动执行机构
中。即各种控制模块采用即插式设计,可以使
执行机构的基础规格得到轻松扩展。
* 低功耗,更节省能源、电缆以其他成本
* 100% 负载率,适用于各种情况,提供过热保护
* 整个行程100%扭矩输出,覆盖各种情况,即使阀门扭矩模式很复杂
* 在任何苛刻的调节工况下每小时可启动 3,600 |
