Premier Lubrication Systems Premier压缩机润滑系统组成 Premier注油器 分配器 过滤器 无油流开关 油位开关



·注油器：整个润滑系统的重要的部件，美GuoPremier公司是全球早生产盒式注油器的厂*之，产品被全球绝大多数知名压缩机厂*采用。Premier的注油器自带减速机构，客户可以根据自己的需要选择驱动方式、减速比、油盒大小和单泵的数量。

·分配器：分配器由标有数值和字母的各个分配阀组成，少需要三个分配块。其特点为各个出油口的润滑油排量按照标定数值比例分配到每个润滑点上，可以根据需要灵活组合阀块的数量，整个分配器上油路相同，有个阀块不能工作的话其它所有的阀块都不能工作，便于集中控制。

·过滤器：通常有两次过滤，在润滑油进注油器前使用个粗过滤器，和在进分配器前用个高压过滤器。

·无油流开关：用来探知分配器的柱塞运动情况来探知系统的油流情况，通常的为无油流两分钟报警，也有58秒、3分钟的无油流报警。

·单向阀：常用的单向阀有单球和双球的单向阀。

·油位开关：用来检测油箱里油位的高低。

·驱动方式: 可以选择外用电机驱动或使用压缩机本身曲轴带动。

Monitors Movement of Divider Valve Piston 监测分配器柱塞的运动 Closed Loop or Open Loop Operation 开式或闭式回路 Installs Directly to Divider Valve 直接安装在分配器上面 Not Affected By Temperature or Viscosity 不受温度和粘度的影响 Requires No External Power 不需要外接电源 LED or LCC Cycle Indicator 带LED或LCC循环指示 Dependable “Timed” Shutdown Protection 可靠的停机保护 Explosion Proof Rated for 防爆等*: Class 1, Division 1, Groups A,B,C,D CSA Approved 通过CSA防爆认证 CE Approved 和CE防爆认证

常用型号：

P-55U Lubricator Assemblies
P-55U Pump Assemblies
P-92 Lubricator Assemblies
Check Valves
PLP Pump Assemblies and Gearboxes
System Components
Accessories
Stainless Steel Lubricator and Pump Assemblies
Custom Lubrication System Consoles
Deliron Magnetic Cycle Indicators
Proximity Switches
DL -900 Monitor
DL-920 Monitor
DLM-820 Monitor
DLM-821 Monitor
DLM-830 Monitor
DLM-831 Monitor
DNFT-LED
DNFT-LED-PS
DNFT-PRG (Programmable)
DNFT-PRG-PS (Programmable)
DNFT-LED
DNFT-LED-PS
DNFT-PRG (Programmable)
DNFT-PRG-PS (Programmable)
PLS-018 Heater/Thermostat Assemblies
PLS-019 90732 Oil Level Controller/ Low Level Switch
PLS-020 Premier Lube Guard Assembly
PLS-021 P-498 Oil Level Controller
PLS-022 Oil Supply Systems

Digital No-Flow Timer (DNFT)
The Revolutionary Digital No-Flow Timer for Compressor Lube Systems
DNFT performs monitoring and shutdown functions like No-Flow, Low-Flow or Excessive-Flow for Divider-Block
Lubrication
Systems. The DNFT is a totally enclosed solid state electronic device for detecting Slow-Flow and No-Flow on in-line
progressive
lubrication systems. The Digital No-Flow Timer incorporates a crystal oscillator to accurately monitor the cycle time
of the
lubrication system enabling precision timed shutdown capability. An internal Lithium battery powers it, which is easily
replaceable.
The Digital No-Flow Timer is an ISO 9001 certified product and the ISO certification can be viewed here. All Digital
No-Flow
Timers also come with a 3 year warranty.
The DNFTs come in three models to switch voltages up to 240 VDC:
DNFT LED model
DNFT LCC model
DNFT PRG model
Downloads (Product Data Sheets)
Instruction guide for each model of the DNFT is available for download. These files are in Adobe Acrobat (.pdf)
format. These
product data sheets are available to be printed out and reviewed for your convenience. You must view these
downloads using
Adobe Acrobat Reader, which is freely available to download at http://www.adobe.com.
Fast Internet Connections(pdf)
Slow Internet Connections
DNFT LED 2 mins
DNFT LED 2 mins
DNFT LED 2 mins
DNFT LED 2 mins
DNFT LED 2 mins
DNFT LED-PS 3 mins
DNFT LED-PS 3 mins
DNFT LED-PS 3 mins
DNFT LED-PS 3 mins
DNFT LED-PS 3 mins
DNFT LCC 45 secs
DNFT LCC 45 secs
DNFT LCC 45 secs
DNFT LCC 45 secs
DNFT LCC 45 secs
DNFT LCC 2 mins
DNFT LCC 2 mins
DNFT LCC 2 mins
DNFT LCC 2 mins
DNFT LCC 2 mins
DNFT LCC 3 mins
DNFT LCC 3 mins
DNFT LCC 3 mins
DNFT LCC 3 mins
DNFT LCC 3 mins
DNFT LCC 255 secs
DNFT LCC 255 secs
DNFT LCC 255 secs
DNFT LCC 255 secs
DNFT LCC 255 secs
DNFT PRG 20 to 255 secs
DNFT PRG 20 to 255 secs
DNFT PRG 20 to 255 secs
DNFT PRG 20 to 255 secs
DNFT PRG 20 to 255 secs
DNFT PRG 20 to 255 secs
DNFT PRG-PS 20 to 255 secs
DNFT PRG-PS 20 to 255 secs
DNFT PRG-PS 20 to 255 secs
DNFT PRG-PS 20 to 255 secs
DNFT PRG-PS 20 to 255 secs
DNFT PRG-PS 20 to 255 secs

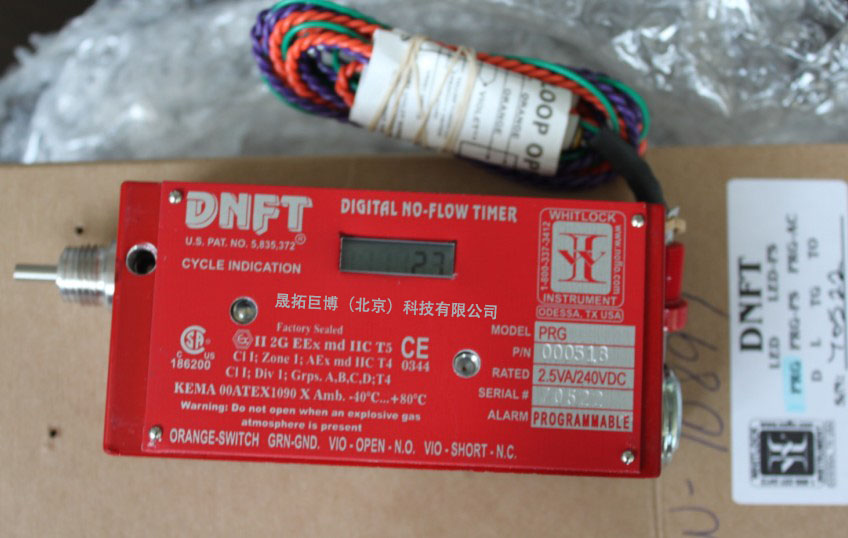

DIGITAL NO－FLOW TIMER，
MODEL：DNFT－PRG，
RATED：2.5VA/DC240V，
P/N：000518，
SERIAL#：36930，
ALARM：PROGRAMMABLE，
MANUFACTURER：WHITLOCK INSTRUMENT，FUEL GAS COMPRESSOR/MH62，
S/N：06H1003/06H1000，
TAG NO.：SKCO－100769/SKCO－100781，HS COMPRESSION PROCESS PTE LTD
DEFT DIGITAL NO－FLOW TIMER\A－6348
DEFT DIGITAL NO－FLOW TIMER；
DNFT－LED－PS，TRAB，DC CYL ASSY，11H：ESF，CERT 500，RATED：2.5VA 240VDC，SERIAL：15550，ALARM：3MIN；
