A型 系列号：A8013
A型是Stucchi平面式快速接头在技术和质量方面都加以提升的高品质系列产品。此系列内部带有高阻力材料的组合设计，确保
在更高工作压力同时达到小压降的完美表现.模块结构设计适应不同的应用都能提供各种螺纹连接或特需的接口，与此同时
还能保持紧凑的外型这些特性使得系列“A”快速接头在很多液压应用领域确立了领导者的地位，诸如在避Mian油液损失和油路
污染时的必要的上乘表现。
互换性标准:ISO 16028和NFPAT3.20.15(HTMA)
特点:特别适用于工程机械，善于处理峰值压力，高品质，带安全锁，
平面式，钢珠锁定，碳钢镀锌。
压力测试:已通过大工作压力脉冲测试，100000次! |

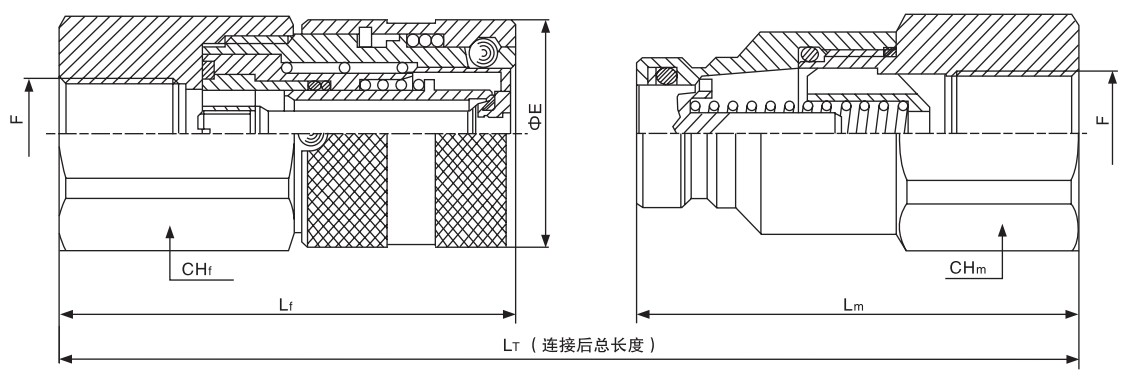

点击查看大图 |
| ISO |
CHf |
CHm |
￠E |
Lt |
Lf |
Lm |
F |
母头订货号(F) |
公头订货号(M) |
组合订货号(FM) |
| 5.0 |
19 |
17 |
20 |
68.5 |
40 |
36.3 |
G1/8 |
A4-F-G1/8 |
A4-M-G1/8 |
A4-FM-G1/8 |
| |
|
|
|
|
|
|
1/8NPT |
A4-F-1/8NPT |
A4-M-1/8NPT |
A4-FM-1/8NPT |
| 6.3 |
27 |
22 |
28 |
90.2 |
53.1 |
47.9 |
G1/4 |
A7-F-G1/4 |
A7-M-G1/4 |
A7-FM-G1/4 |
| |
|
|
|
|
|
|
1/4NPT |
A7-F-1/4NPT |
A7-F-1/4NPT |
A7-F-1/4NPT |
| 10 |
30 |
27 |
32 |
108.8 |
64.8 |
60 |
G3/8 |
A9-F-G3/8 |
A9-M-G3/8 |
A9-FM-G3/8 |
| |
|
|
|
|
|
|
3/8NPT |
A9-F-3/8NPT |
A9-M-3/8NPT |
A9-FM-3/8NPT |
| 10 |
30 |
27 |
32 |
116.3 |
69.8 |
62.5 |
G1/2 |
A9-F-G1/2 |
A9-M-G1/2 |
A9-FM-G1/2 |
| |
|
|
|
|
|
|
1/2NPT |
A9-F-1/2NPT |
A9-M-1/2NPT |
A9-FM-1/2NPT |
| 12.5 |
36 |
36 |
38 |
127.6 |
76.8 |
68 |
G1/2 |
A13-F-G1/2 |
A13-M-G1/2 |
A13-FM-G1/2 |
| |
|
|
|
|
|
|
1/2NPT |
A13-F-1/2NPT |
A13-M-1/2NPT |
A13-FM-1/2NPT |
| 12.5 |
36 |
36 |
38 |
137.1 |
83.8 |
70.5 |
G3/4 |
A13-F-G3/4 |
A13-M-G3/4 |
A13-FM-G3/4 |
| |
|
|
|
|
|
|
3/4NPT |
A13-F-3/4NPT |
A13-M-3/4NPT |
A13-FM-3/4NPT |
| 16 |
41 |
36 |
42 |
139.5 |
84 |
73 |
G3/4 |
A15-F-G3/4 |
A15-M-G3/4 |
A15-FM-G3/4 |
| |
|
|
|
|
|
|
3/4NPT |
A15-F-3/4NPT |
A15-M-3/4NPT |
A15-FM-3/4NPT |
| 19 |
46 |
46 |
48 |
158.7 |
96.8 |
83.7 |
G3/4 |
A17-F-G3/4 |
A17-M-G3/4 |
A17-FM-G3/4 |
| |
|
|
|
157.7 |
95.8 |
|
3/4NPT |
A17-F-3/4NPT |
A17-M-3/4NPT |
A17-FM-3/4NPT |
| 19 |
46 |
48 |
48 |
160.7 |
98.8 |
83.7 |
G1 |
A17-F-G1 |
A17-M-G1 |
A17-FM-G1 |
| |
|
|
|
|
|
|
1NPT |
A17-F-1NPT |
A17-M-1NPT |
A17-FM-1NPT |
| 25 |
55 |
55 |
55 |
178.6 |
104.8 |
96.8 |
G1 |
A21-F-G1 |
A21-M-G1 |
A21-FM-G1 |
| |
|
|
|
|
|
|
1NPT |
A21-F-1NPT |
A21-M-1NPT |
A21-FM-1NPT |
| 25 |
55 |
55 |
55 |
172.8 |
105.8 |
90 |
G1-1/4 |
A21-F-G1-1/4 |
A21-M-G1-1/4 |
A21-FM-G1-1/4 |
| |
|
|
|
|
|
|
1-1/4NPT |
A21-F-1-1/4NPT |
A21-M-1-1/4NPT |
A21FM-1-1/4NPT |
| 28.5 |
55 |
55 |
65 |
197.1 |
120.1 |
100 |
G1 |
A25-F-G1 |
A25-M-G1 |
A25-FM-G1 |
| |
|
|
|
207.1 |
125.1 |
105 |
1NPT |
A25-F-1NPT |
A25-M-1NPT |
A25-FM-1NPT |
| 28.5 |
55 |
55 |
65 |
207.1 |
125.1 |
105 |
G1-1/4 |
A25-F-G1-1/2 |
A25-M-G1-1/4 |
A25-FM-G1-1/4 |
| |
|
|
|
|
|
|
1-1/4NPT |
A25-F-1-1/4NPT |
A25-M-1-1/4NPT |
A25-FM-1-1/4NPT |
| 31.5 |
65 |
65 |
80 |
215.1 |
132.4 |
111.1 |
G1-1/2 |
A30-F-G1-1/2 |
A30-M-G1-1/2 |
A30-FM-G1-1/2 |
| |
|
|
|
|
|
|
1-1/2NPT |
A30-F-1-1/2NPT |
A30-M-1-1/2NPT |
A30-FM-1-1/2NPT |
①不可带压操作。②使用防尘帽是非常必要的。③其它对外连接螺纹可按需提供。 |
| ISO |
DN |
接合状态下 大工作压力(bar) |
公称流量(L/min) |
| 5.0 |
4.0 |
420 |
3-6 |
| 6.3 |
7.0 |
420 |
12 - 24 |
| 10 |
9.0 |
350 |
23 - 46 |
| 12.5 |
13.0 |
330 |
45 - 90 |
| 16 |
15.0 |
330 |
74 - 148 |
| 19 |
17.0 |
330 |
100 - 200 |
| 25 |
21.0 |
300 |
189 - 378 |
| 28.5 |
25.0 |
300 |
225 - 450 |
| 31.5 |
30.0 |
270 |
288 - 750 |
|
|
|
|
