BIR型 系列号：A8005
"BIR”是锥面式快速接头，依据Guo际标准ISO7241-1A，可以进行互换, 碳钢镀锌。
BIR系列具有全Shi Jie广泛的通用性和实用性，规格从1/4”到2”。因而 BIR系列主要在农业和工业液压领域有着
为广泛的应用。
互换性标准：ISO7241-1A。 |

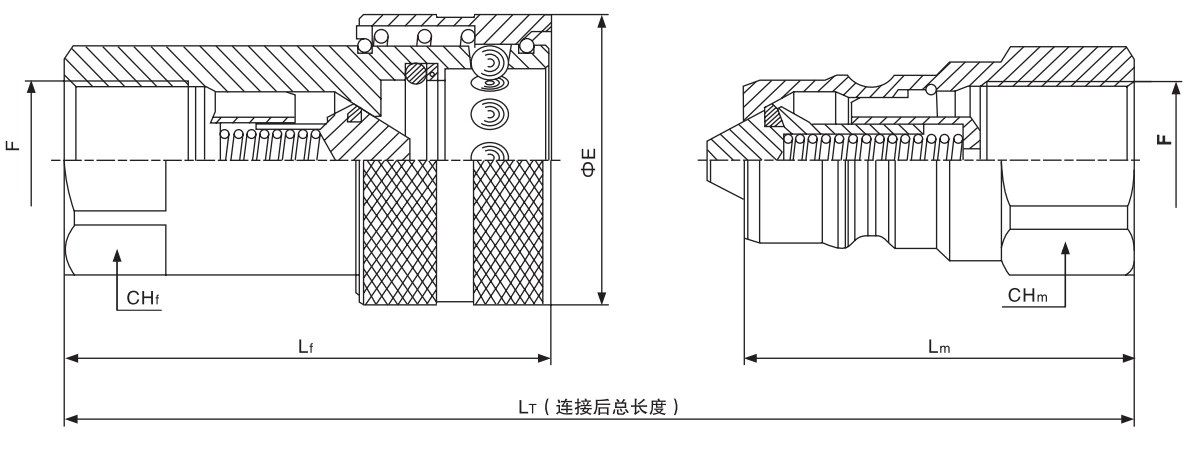

点击查看大图 |
| ISO |
CHf |
CHm |
￠E |
Lt |
Lf |
Lm |
F |
母头订货号(F) |
公头订货号(M) |
组合订货号(FM) |
| 6.3 |
19 |
19 |
26 |
64.8 |
47.1 |
32 |
G1/4 |
BIR-F-G1/4 |
BIR-M-G1/4 |
BIR-FM-G1/4 |
| |
|
|
|
|
|
|
1/4NPT |
BIR-F-1/4NPT |
BIR-F-1/4NPT |
BIR-F-1/4NPT |
| 10 |
22 |
22 |
31 |
76.8 |
56.1 |
38 |
G3/8 |
BIR-F-G3/8 |
BIR-M-G3/8 |
BIR-FM-G3/8 |
| |
|
|
|
|
|
|
3/8NPT |
BIR-F-3/8NPT |
BIR-M-3/8NPT |
BIR-FM-3/8NPT |
| 12.5 |
27 |
27 |
38 |
86.3 |
63.3 |
44.5 |
G1/2 |
BIR-F-G1/2 |
BIR-M-G1/2 |
BIR-FM-G1/2 |
| |
|
|
|
|
|
|
1/2NPT |
BIR-F-1/2NPT |
BIR-M-1/2NPT |
BIR-FM-1/2NPT |
| 20 |
38 |
36 |
48 |
111.1 |
82.2 |
55 |
G3/4 |
BIR-F-G3/4 |
BIR-M-G3/4 |
BIR-FM-G3/4 |
| |
|
|
|
|
|
|
3/4NPT |
BIR-F-3/4NPT |
BIR-M-3/4NPT |
BIR-FM-3/4NPT |
| 25 |
45 |
41 |
54 |
127.3 |
97.1 |
63.1 |
G1 |
BIR-F-G1 |
BIR-M-G1 |
BIR-FM-G1 |
| |
|
|
|
|
|
|
1NPT |
BIR-F-1NPT |
BIR-M-1NPT |
BIR-FM-1NPT |
| 31.5 |
50 |
55 |
65 |
151.2 |
117.2 |
75 |
G1-1/4 |
BIR-F-G1-1/4 |
BIR-M-G1-1/4 |
BIR-FM-G1-1/4 |
| |
|
|
|
|
|
|
1-1/4NPT |
BIR-F-1-1/4NPT |
BIR-M-1-1/4NPT |
BIR-FM-1-1/4NPT |
| 40 |
60 |
60 |
80 |
171.3 |
135.3 |
85 |
G1-1/2 |
BIR-F-G1-1/2 |
BIR-M-G1-1/2 |
BIR-FM-G1-1/2 |
| |
|
|
|
|
|
|
1-1/2NPT |
BIR-F-1-1/2NPT |
BIR-M-1-1/2NPT |
BIR-FM-1-1/2NPT |
| 50 |
75 |
75 |
100 |
201.2 |
160.2 |
100 |
G2 |
BIR-F-G2 |
BIR-M-G2 |
BIR-FM-G2 |
| |
|
|
|
|
|
|
2NPT |
BIR-F-2NPT |
BIR-M-2NPT |
BIR-FM-2NPT |
①不可带压操作。②推荐使用防尘帽。③其它对外连接螺纹可按需提供。 |
| ISO |
DN |
接合状态下 大工作压力(bar) |
公称流量(L/min) |
| 6.3 |
5.0 |
350 |
12 - 24 |
| 10 |
9.0 |
300 |
23 - 46 |
| 12.5 |
13.0 |
250 |
45 - 90 |
| 16 |
15.0 |
250 |
74 - 148 |
| 19 |
17.0 |
250 |
100 - 200 |
| 25 |
21.0 |
250 |
189 - 378 |
| 31.5 |
30.0 |
200 |
288 - 750 |
| 40 |
42.0 |
200 |
379 - 1000 |
|
|
|
|
